JF5-2.5 mm Screw Type Din Rail Terminal Block
price

US $0.10 - US $0.12

JF5-2.5
100 pieces
99999pieces / Week
Ningbo or Shanghai
Quantity
  • Place of Origin:CN;ZHE
  • Conductor Size:11 - 20 AWG
  • Model Number:JF5-2.5
  • Brand Name:SIPUN
  • Number of Contacts:1 - 10
  • Type:Screw
  • T/W/H:9.5*35*34
  • Rated Voltage:660V
  • Rated Current:24A
  • Section:2.5 mm2
  • Rigid wire:1.0-2.5 mm2
  • Soft wire:1.0-2.5 mm2
  • Screw type:M4
  • Torque:1.2 Nm
  • Stripping Length:8 mm
Product Description

JF5 series is apply to 50HZ/60HZ , 660 or 440 VDC electric wire connection. It conform to GB/T14048.1-2006, JB/TT9659.1-2006, IEC60947-7-1.
JF5 used the PC material, can pass the 960℃ glow wire experiment. can working in the 120℃ environment.

Model Number
JF5-2.5

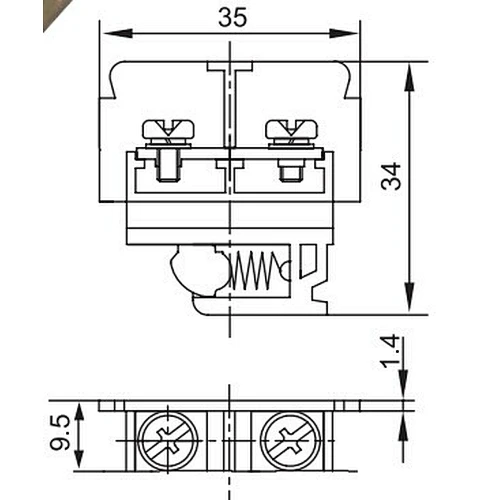

T/W/H(mm)
9.5*35*34
Clamping screw
M4
Torque(Nm)
1.2
Stripping Length(mm)
8
Rated Voltage(V)
660
Rated Current(A)
24
Cross Section(mm)
2.5

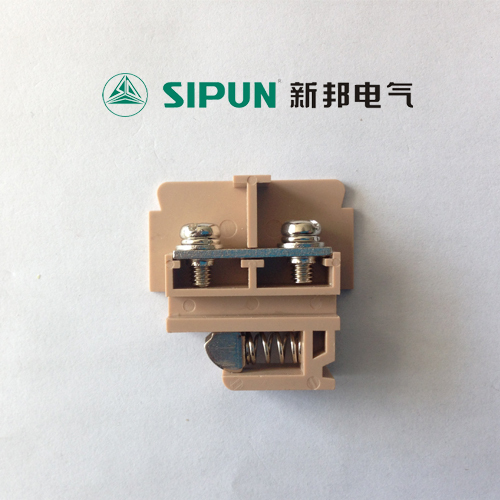

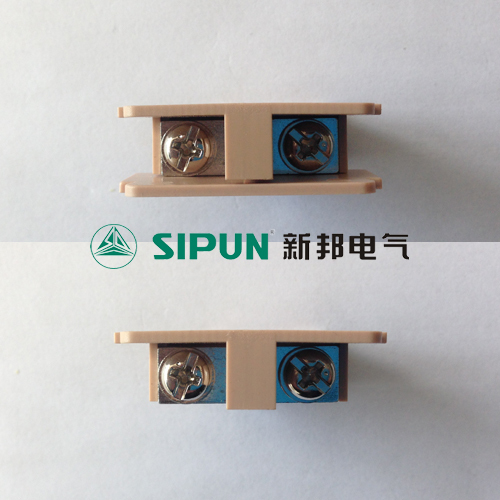

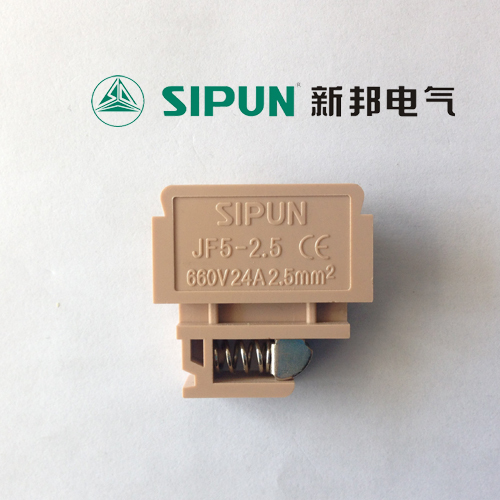

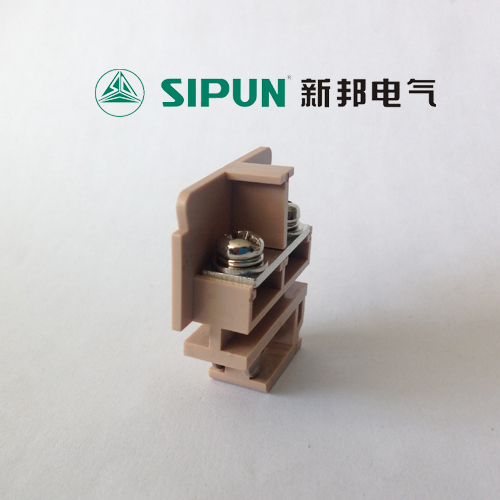

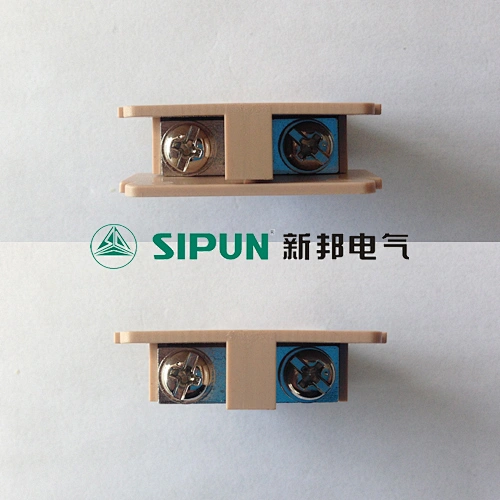

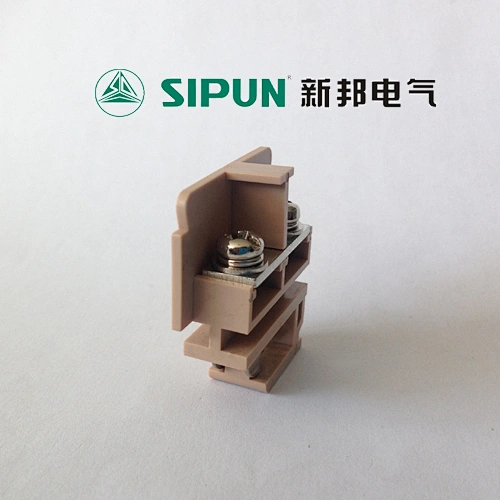

Products Show
Our Service

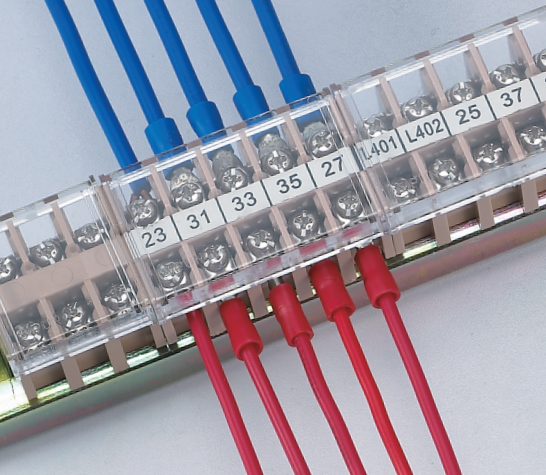

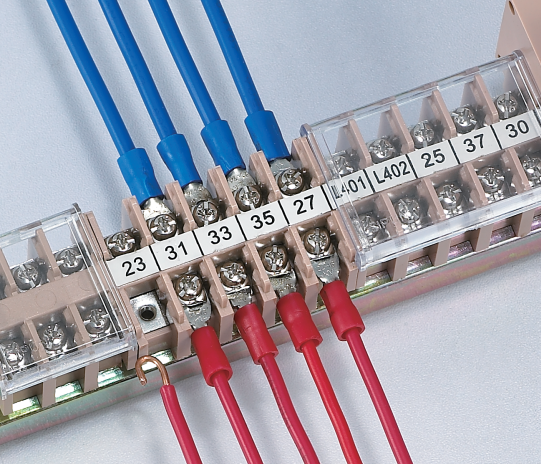

Wiring

JF5 series can use for TU/TO terminal cable.

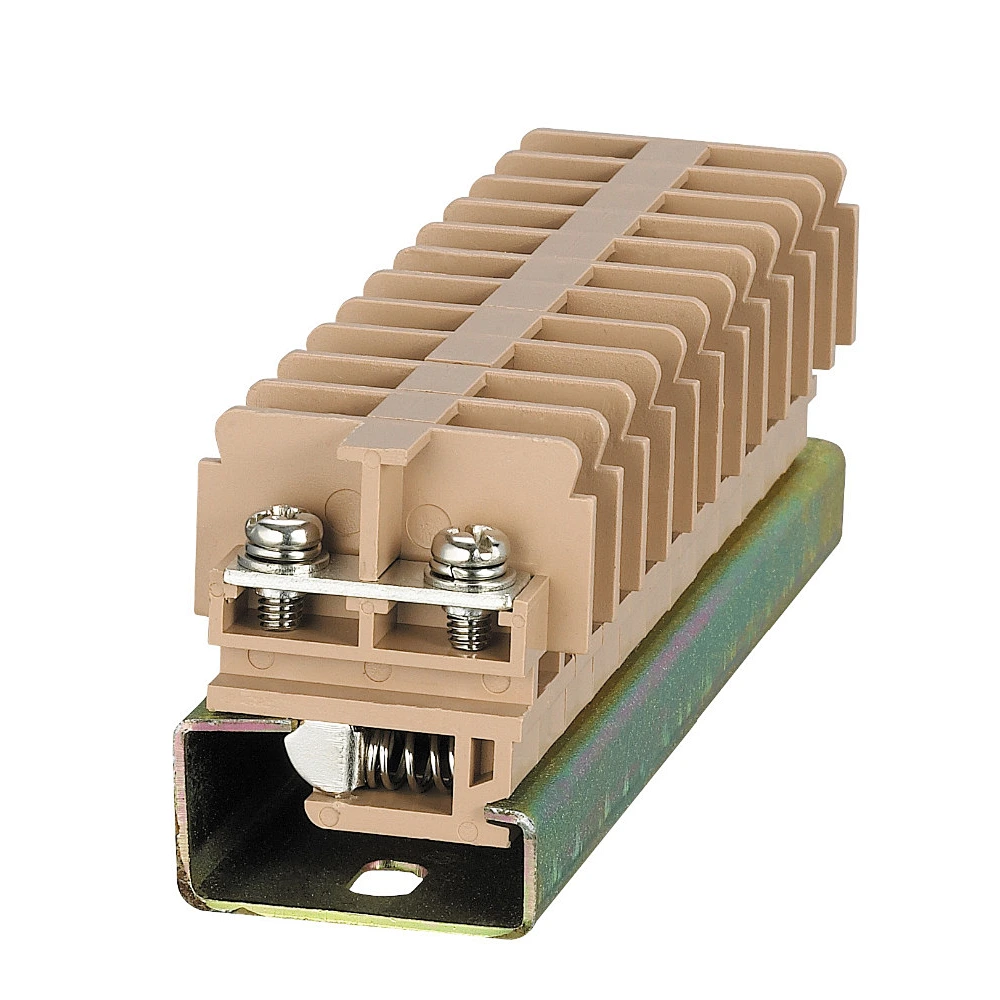

Install

Install the dust cap, safety and beauty.

Our Company

Factory

Our Factory

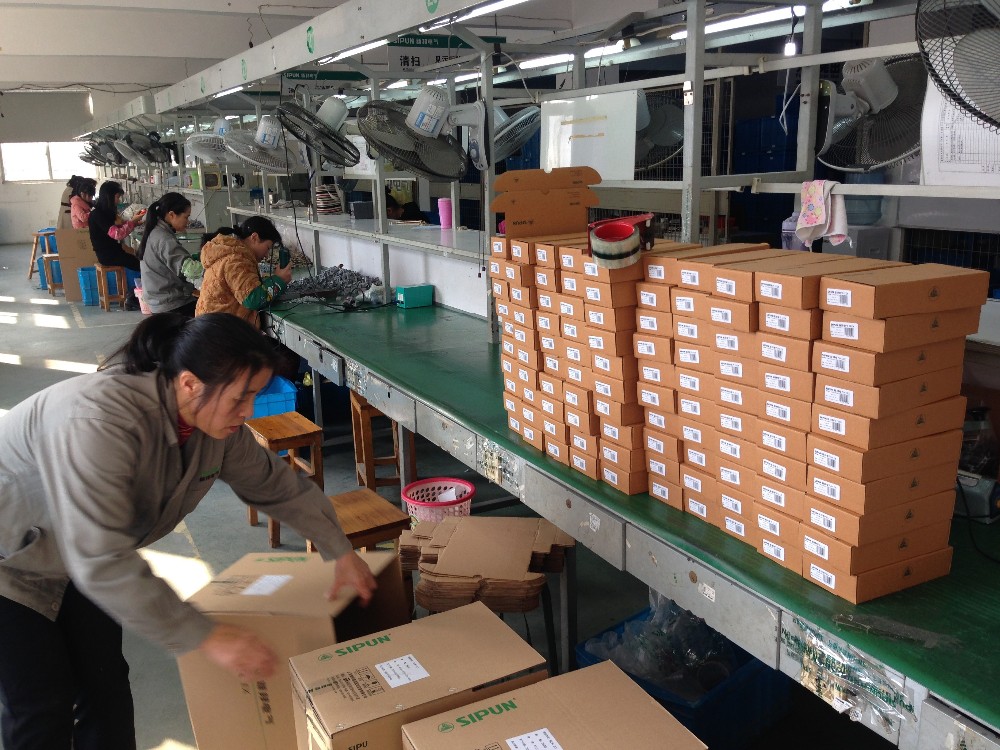

Workshop

Our Workshop

Office

Our office

Ware house

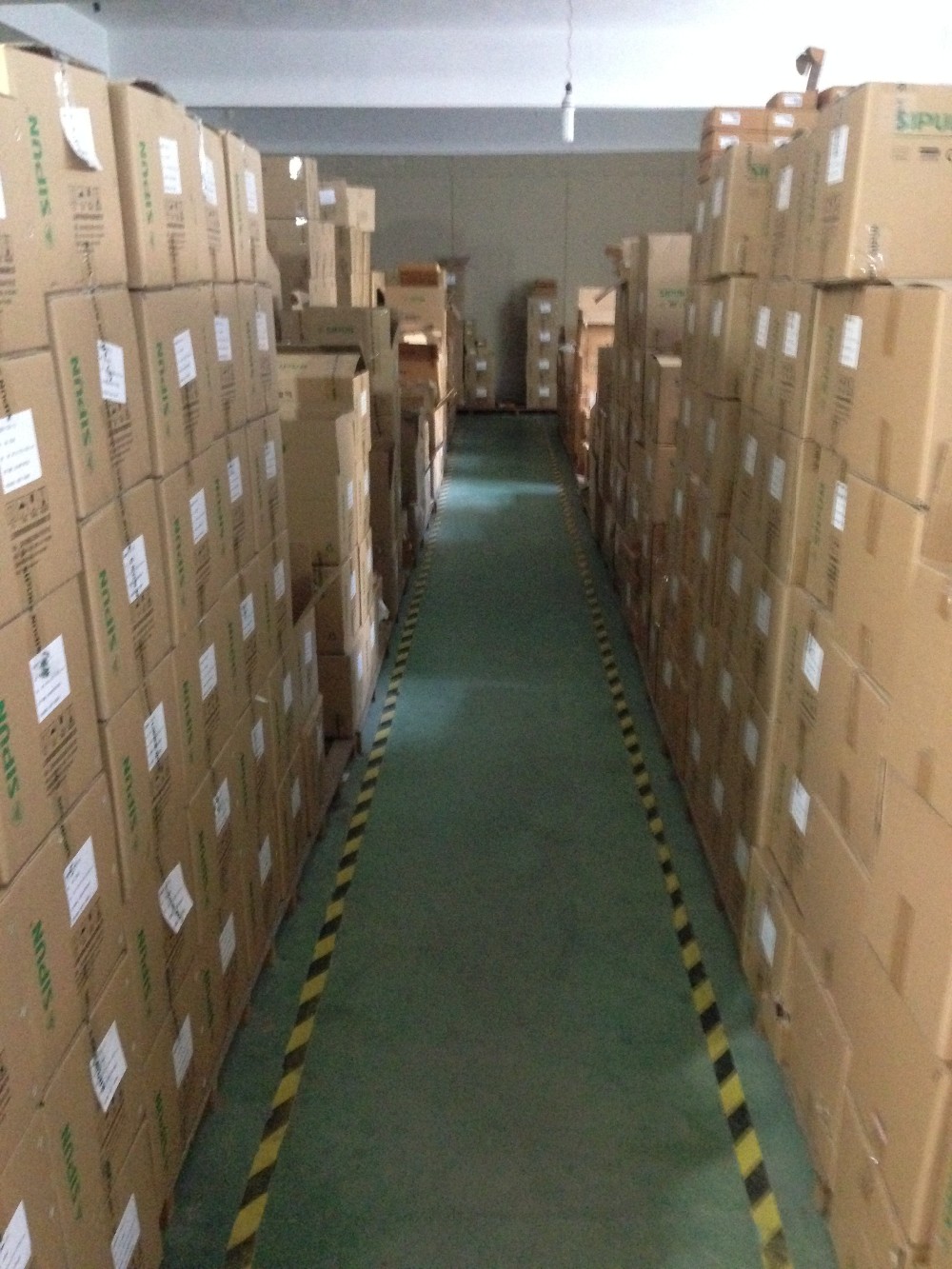

Our Ware house

Packing & Delivery

Packing Details : 47*31*28 cm carton
Delivery Details : 3-15 days after payment

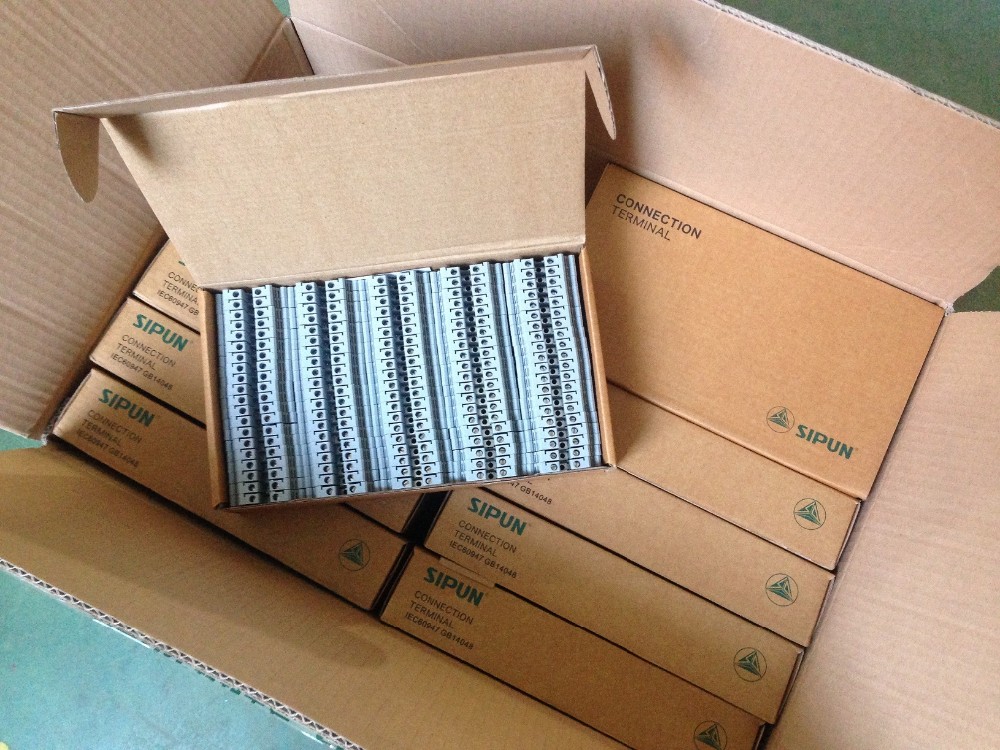

Packing

Use the 47*31*28 cm carton.
1 carton will be about 15~20KG.
we also can send small box like the photo.

Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: If we are the first time cooperation , 100% in advance.

If you have another question, pls feel free to contact us as below:

Skype: live:522679145
Phone: +86 13867743618
Wechat: 13867743618
