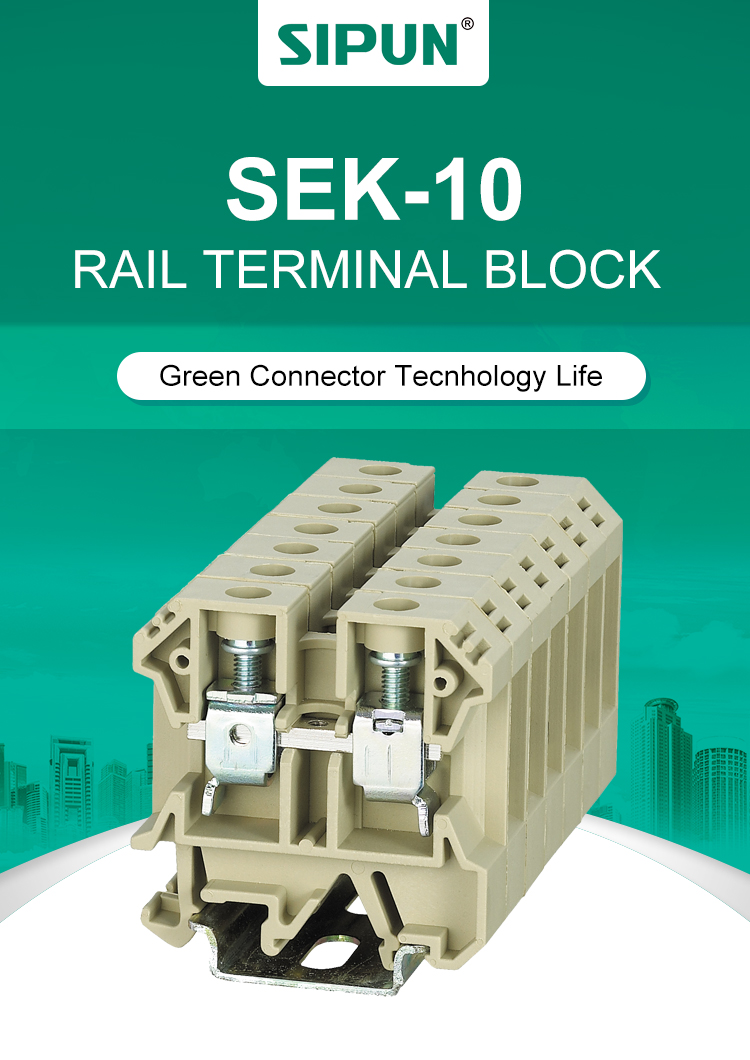

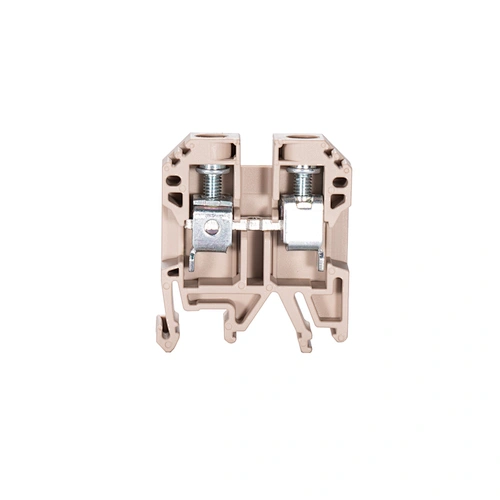

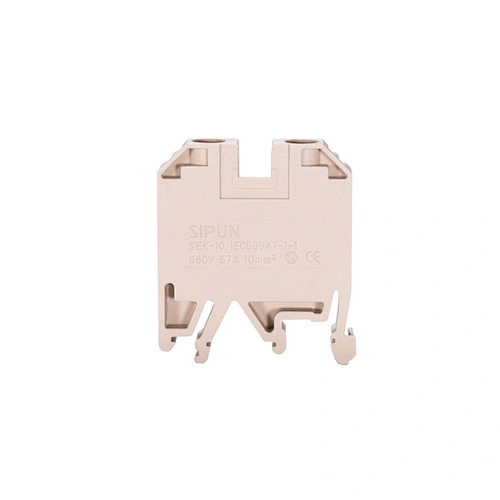

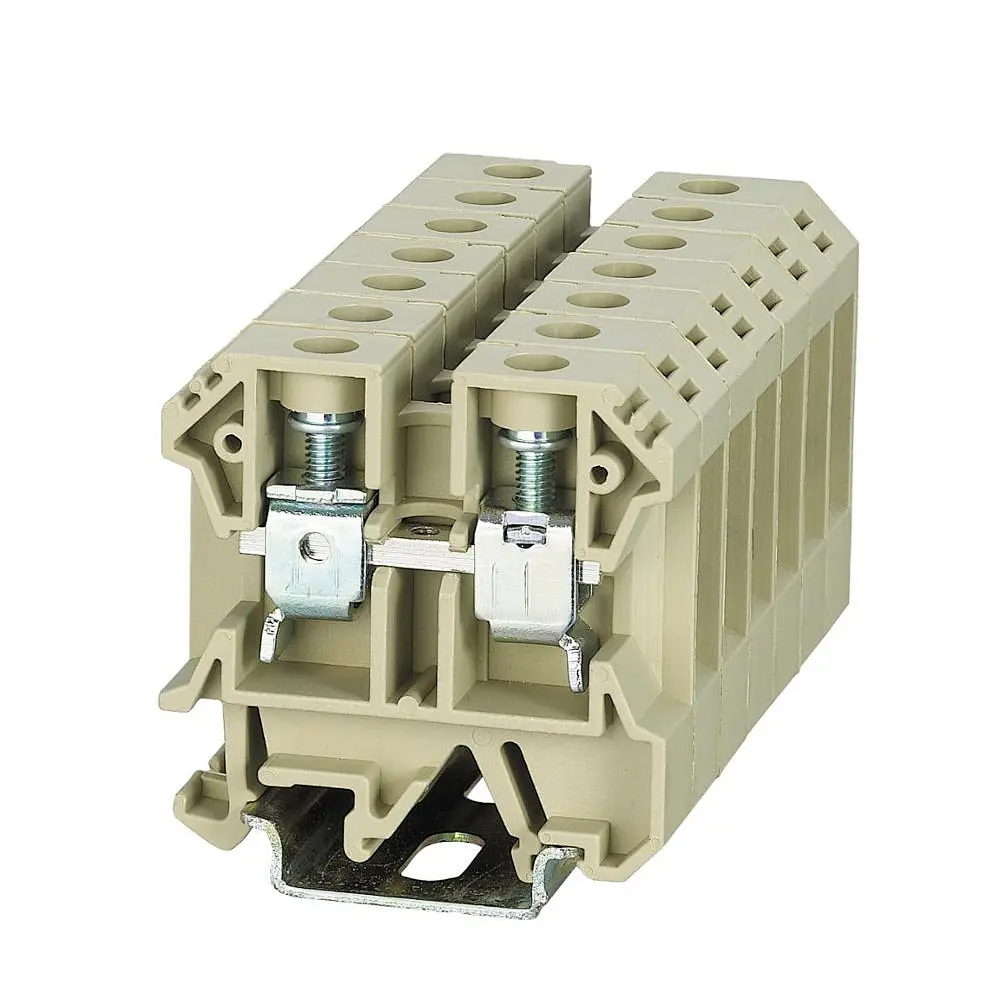

SEK-10 Din Rail Screw Connector Terminal Block Frame-Type Screw Terminal Block
price
0.37 - 0.37
SEK-10
Quantity
- cross section:10 SQMM
- rail:din
- operating temperature:-25℃~55℃
- material:PA66
- voltage:660V
- current:57A
- size:10*41*46
- Number of Contacts:1 - 10
- Conductor Size:11 - 20 AWG
- Type:Feed Through
- Place of Origin:CN;ZHE
- Brand Name:SIPUN
- Model Number:SEK-10

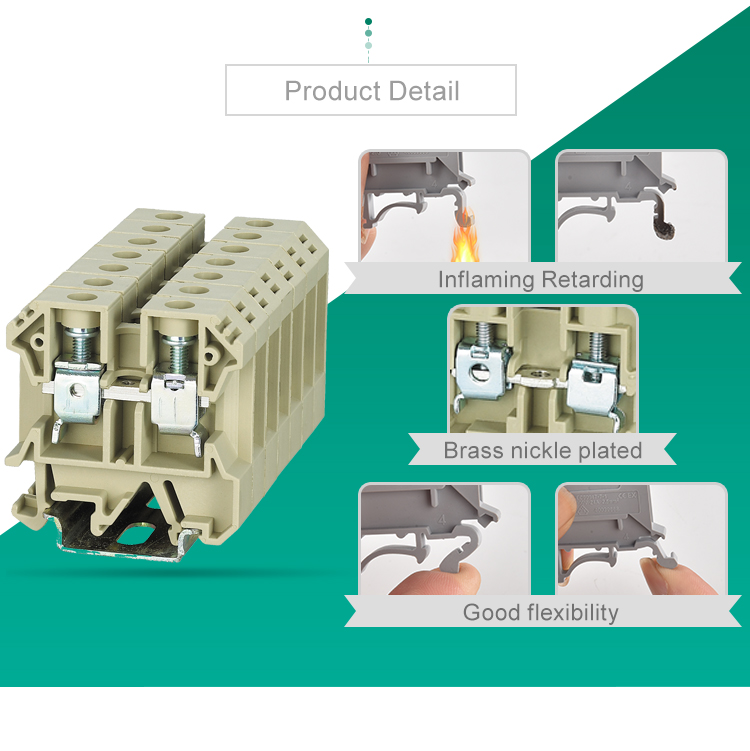

Product Description
Model name | SEK-10 |

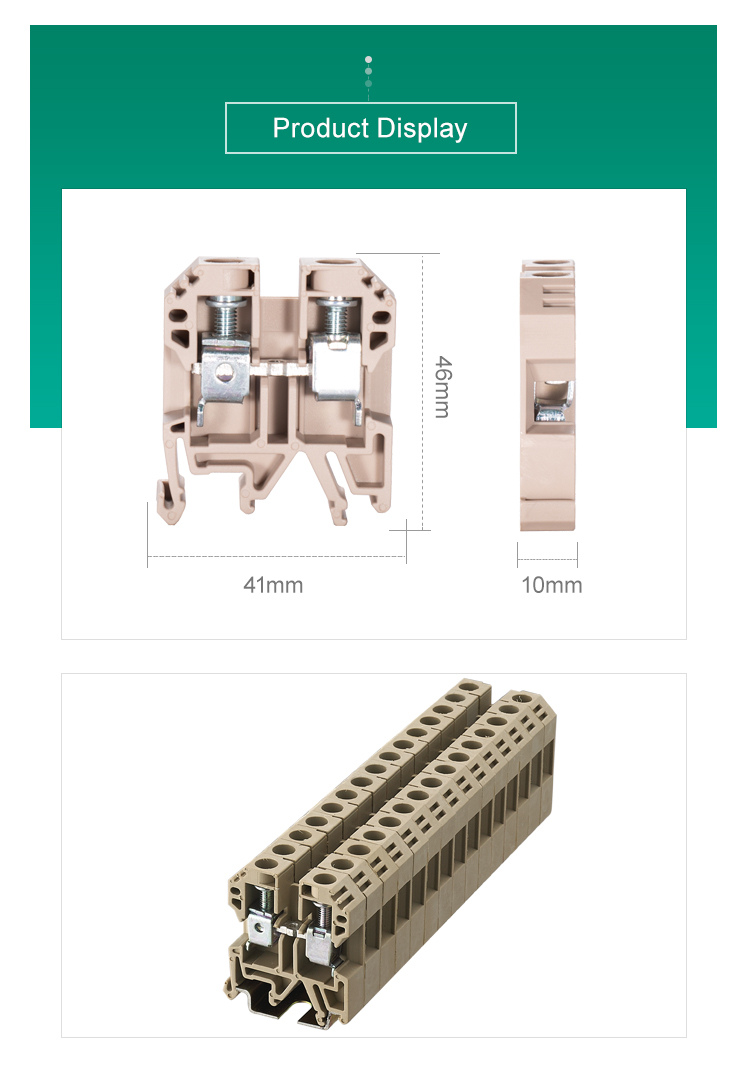

Size(L/W/H) | 10*41*46mm |
Rate Voltage | 660V |
Rate Current | 57A |
Wire range | 1.5-16 mm2 |
Torque | 2.0-2.4 Nm |
Material | PA66 |
Certificate | Rosh/EX/ISO9001/CE/VDE |
