US $0.14 - US $1.54
- Place of Origin:CN;ZHE
- Brand Name:sipun
- Type:Screw Terminal
- Model Number:SUK-4/1x2
- wire range:4 SQMM
- rail:din
- operating temperature:-25℃~55℃
- material:PA66
- voltage:500V
- current:32A
- size:6.2*47*51
single inlet double outlet screw frame type connectors
Descruotion:
1.General specifications SUK-4/1*2 terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-4mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-4/1x2 |

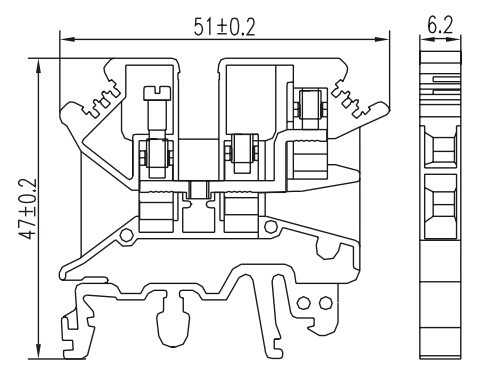

| T/W/H(mm) | 6.2*47*51 |
| Clamping screw | M3 |
| Torque | 0.6-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 500V |
| Reted Current | 32A |
| Cross Section | 4mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-4mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

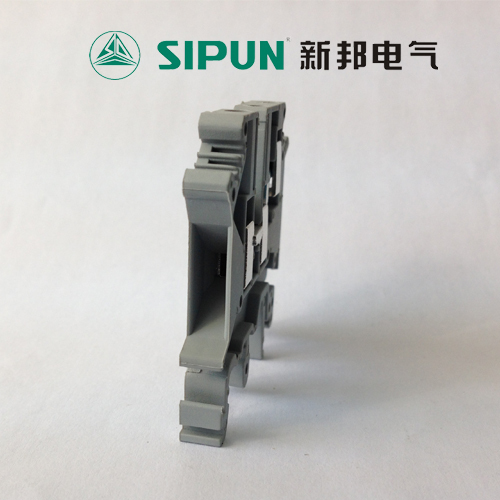

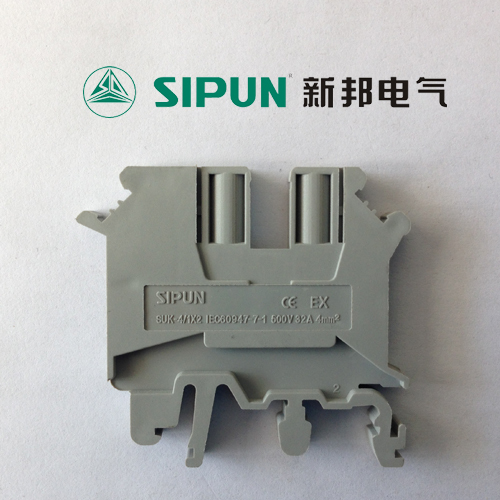

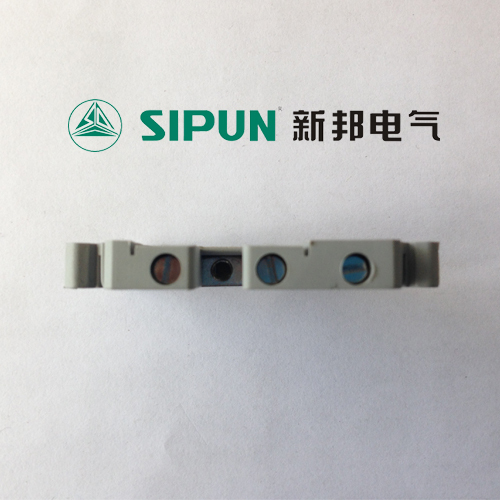

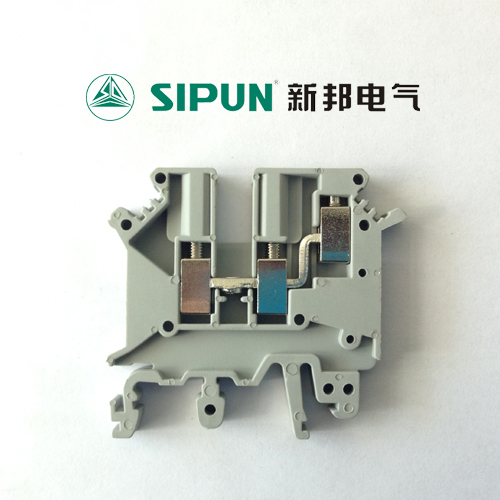

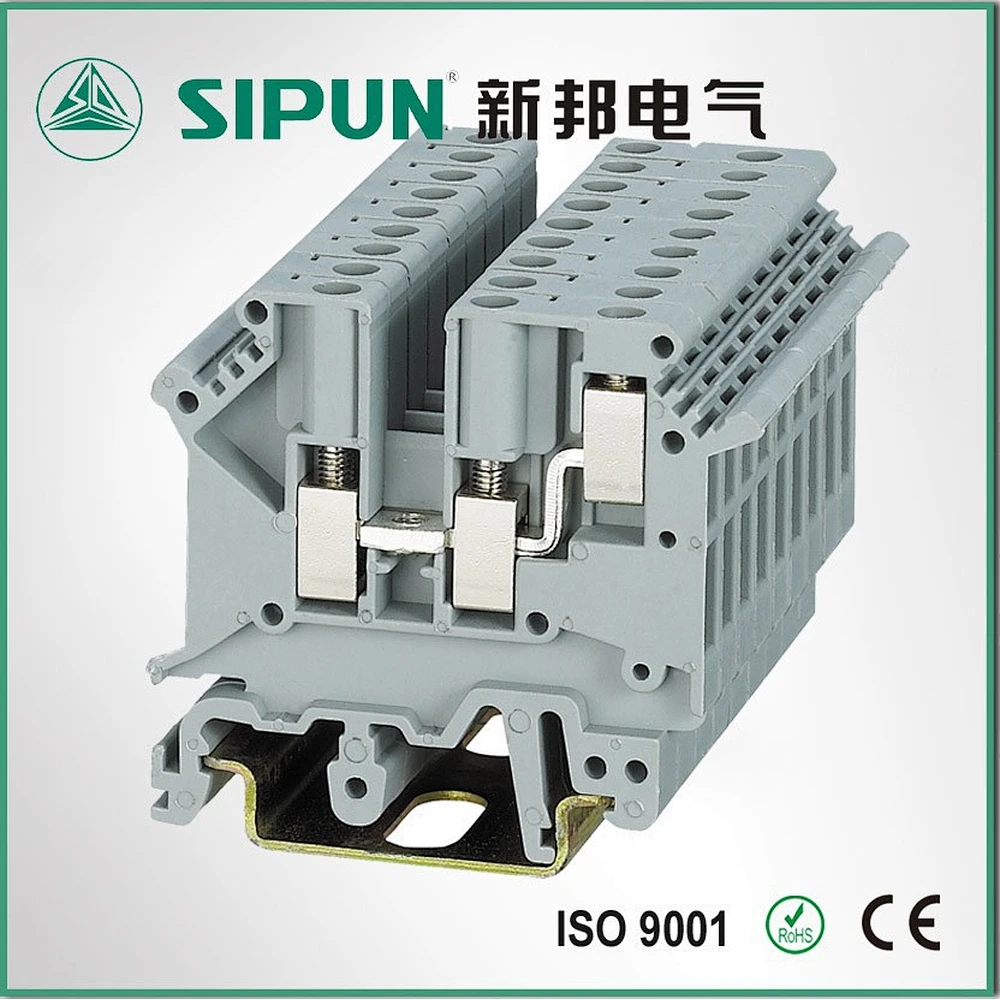

Product shows:
we can customize your color:

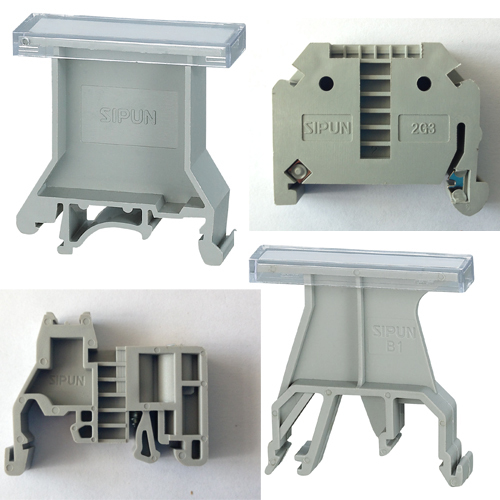

Parts:

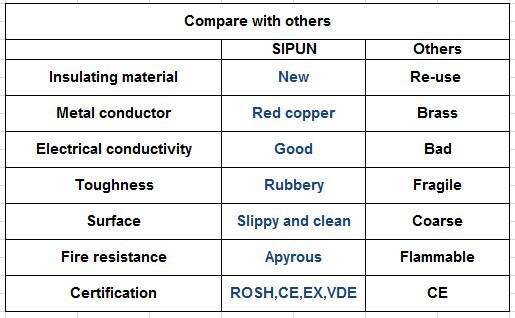

Compare with others:

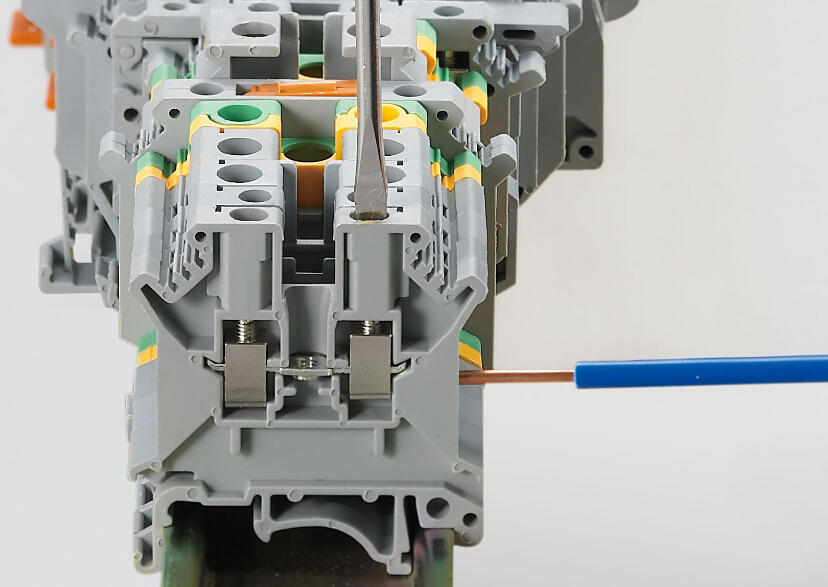

Wiring diagram:

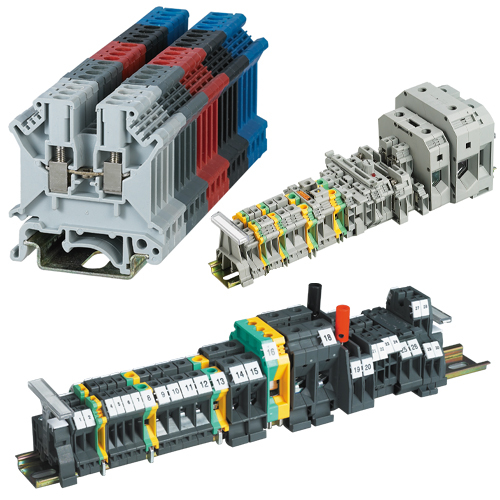

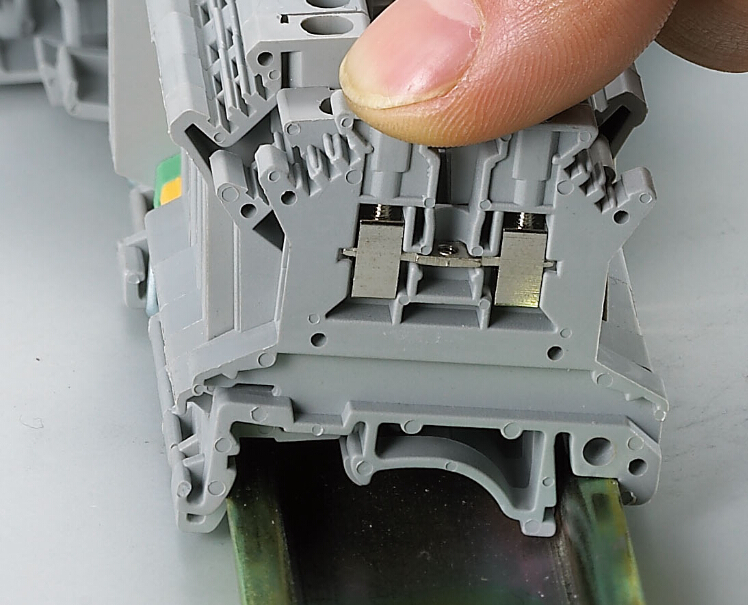

Installation:

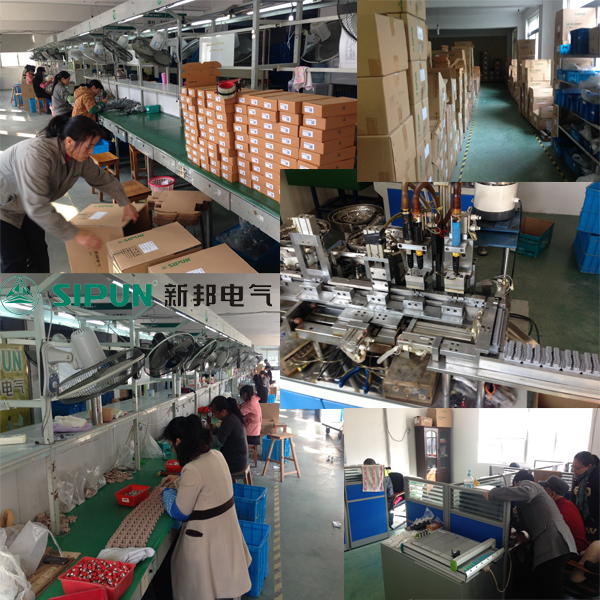

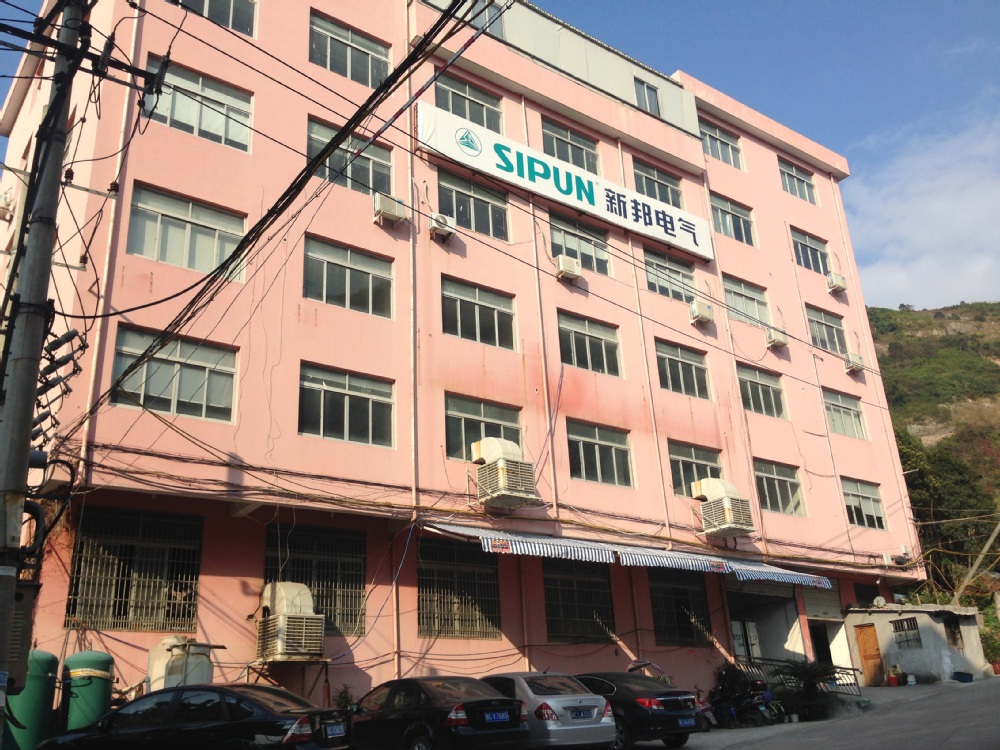

Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
